# 各个选项意义可RTFM https://www.qemu.org/docs/master/system/riscv/virt.html
qemu-system-riscv64

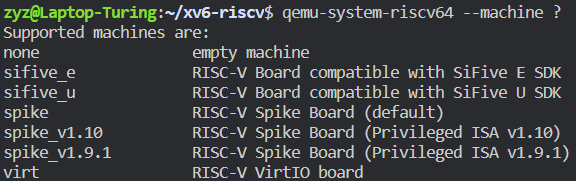

	-machine virt
	-bios none
	-kernel kernel/kernel # 通过-kernel 选项直接把可执行文件加载到内存空间中
	-m 128M               # 分配128M RAM
	-smp 1
	-nographic
	-monitor telnet:127.0.0.1:55555,server,nowait
	-drive file=fs.img,if=none,format=raw,id=x0
	-device virtio-blk-device,drive=x0,bus=virtio-mmio-bus.0
	-S
	-gdb tcp::26003

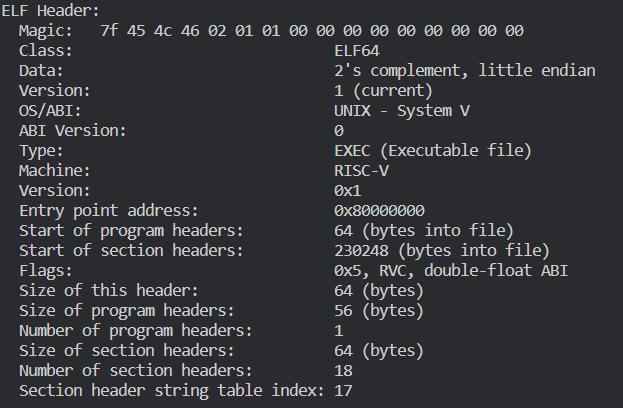

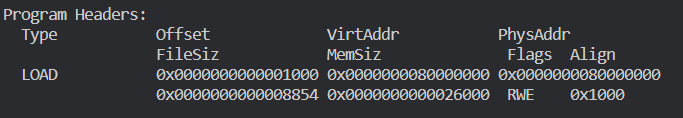

// kernel/kernel.ld

OUTPUT_ARCH( "riscv" )
ENTRY( _entry )

SECTIONS
{
  /*
   * ensure that entry.S / _entry is at 0x80000000,
   * where qemu's -kernel jumps.
   */
  . = 0x80000000;

  .text : {
    *(.text .text.*)
    . = ALIGN(0x1000);
    _trampoline = .;
    *(trampsec)
    . = ALIGN(0x1000);
    ASSERT(. - _trampoline == 0x1000, "error: trampoline larger than one page");
    PROVIDE(etext = .);
  }

  .rodata : {
    . = ALIGN(16);
    *(.srodata .srodata.*) /* do not need to distinguish this from .rodata */
    . = ALIGN(16);
    *(.rodata .rodata.*)
  }

  .data : {
    . = ALIGN(16);
    *(.sdata .sdata.*) /* do not need to distinguish this from .data */
    . = ALIGN(16);
    *(.data .data.*)
  }

  .bss : {
    . = ALIGN(16);
    *(.sbss .sbss.*) /* do not need to distinguish this from .bss */
    . = ALIGN(16);
    *(.bss .bss.*)
  }

  PROVIDE(end = .);
}

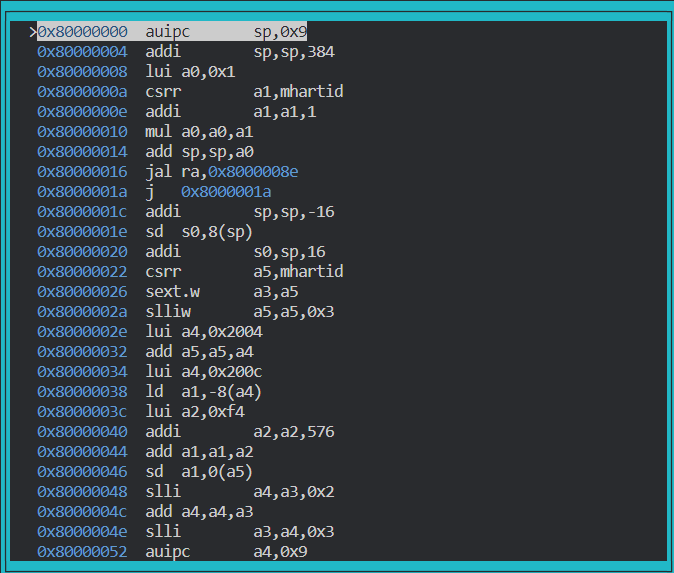

# qemu -kernel loads the kernel at 0x80000000
        # and causes each CPU to jump there.
        # kernel.ld causes the following code to
        # be placed at 0x80000000.
.section .text
.global _entry
_entry:
	# set up a stack for C.
        # stack0 is declared in start.c,
        # with a 4096-byte stack per CPU.
        # sp = stack0 + (hartid * 4096)
        la sp, stack0
        li a0, 1024*4
				csrr a1, mhartid
        addi a1, a1, 1
        mul a0, a0, a1
        add sp, sp, a0
	# jump to start() in start.c
        call start
spin:
        j spin

void
start()
{

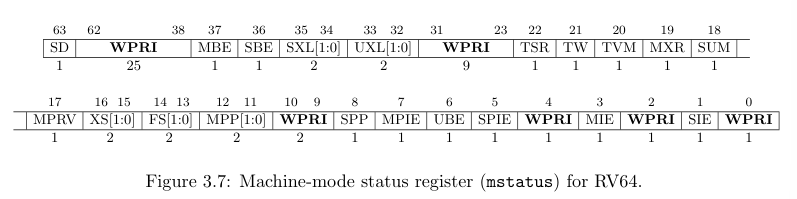

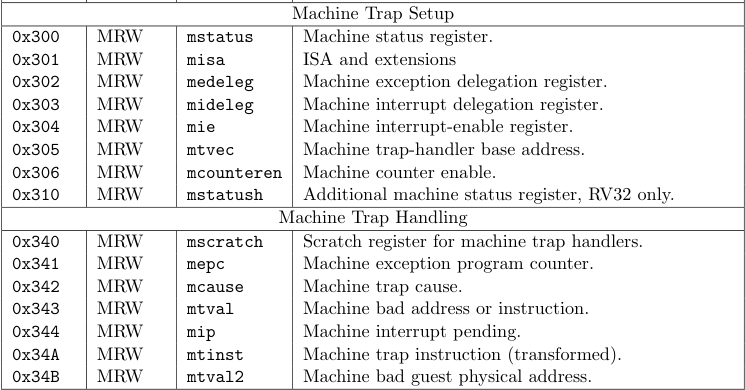

  // set M Previous Privilege mode to Supervisor, for mret.

  unsigned long x = r_mstatus();
  x &= ~MSTATUS_MPP_MASK;
  x |= MSTATUS_MPP_S;
  w_mstatus(x);

  // set M Exception Program Counter to main, for mret.
  // requires gcc -mcmodel=medany
  w_mepc((uint64)main);

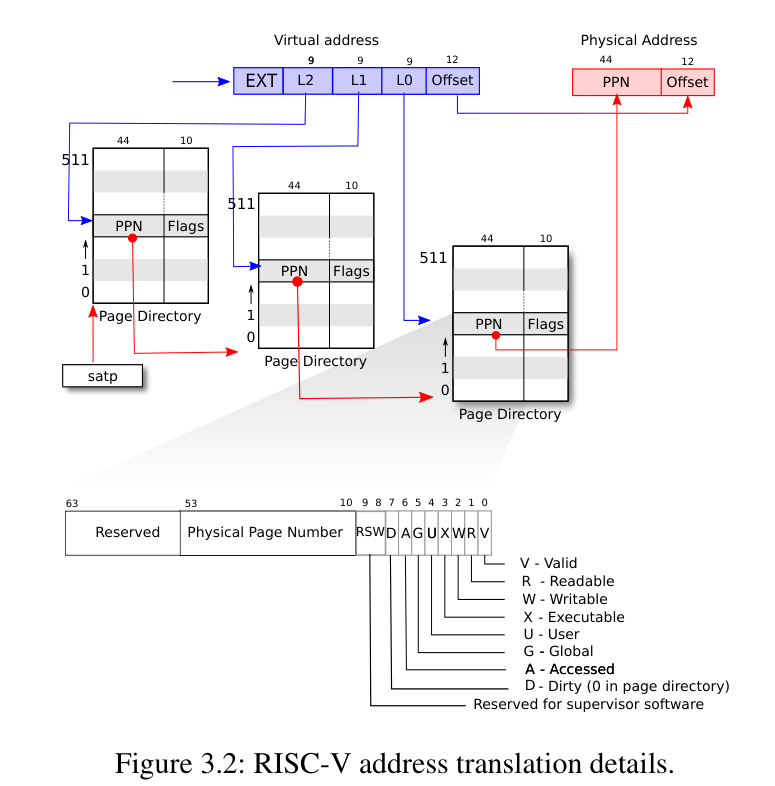

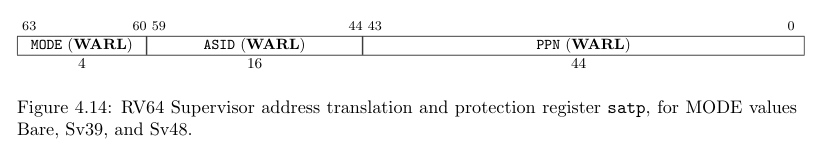

  // disable paging for now.
  w_satp(0);

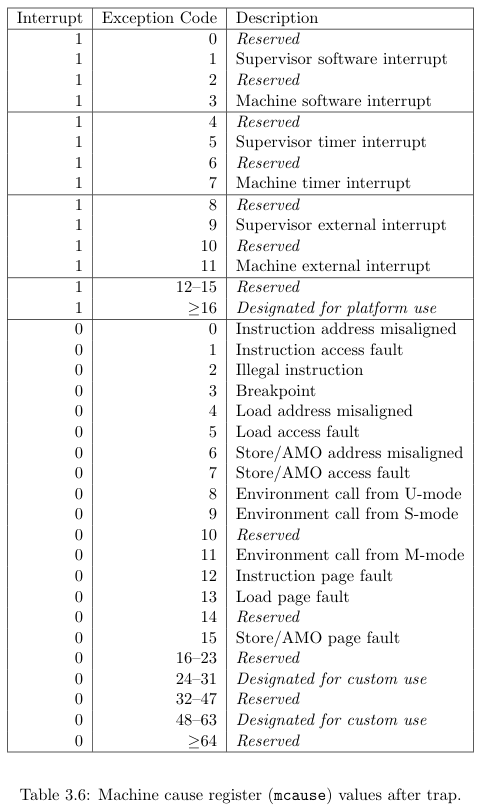

  // delegate all interrupts and exceptions to supervisor mode.
  w_medeleg(0xffff);
  w_mideleg(0xffff);
  w_sie(r_sie() | SIE_SEIE | SIE_STIE | SIE_SSIE);

  // configure Physical Memory Protection to give supervisor mode
  // access to all of physical memory.
  w_pmpaddr0(0x3fffffffffffffull);
  w_pmpcfg0(0xf);  // If PMP entry 0’s A field is set to TOR, zero is used for the lower bound, and so it matches any address y < pmpaddr0.

  // ask for clock interrupts.
  timerinit();

  // keep each CPU's hartid in its tp register, for cpuid().
  int id = r_mhartid();
  w_tp(id);

  // switch to supervisor mode and jump to main().
  asm volatile("mret");
}

// set up to receive timer interrupts in machine mode,
// which arrive at timervec in kernelvec.S,
// which turns them into software interrupts for
// devintr() in trap.c.
void
timerinit()
{
  // each CPU has a separate source of timer interrupts.
  int id = r_mhartid();

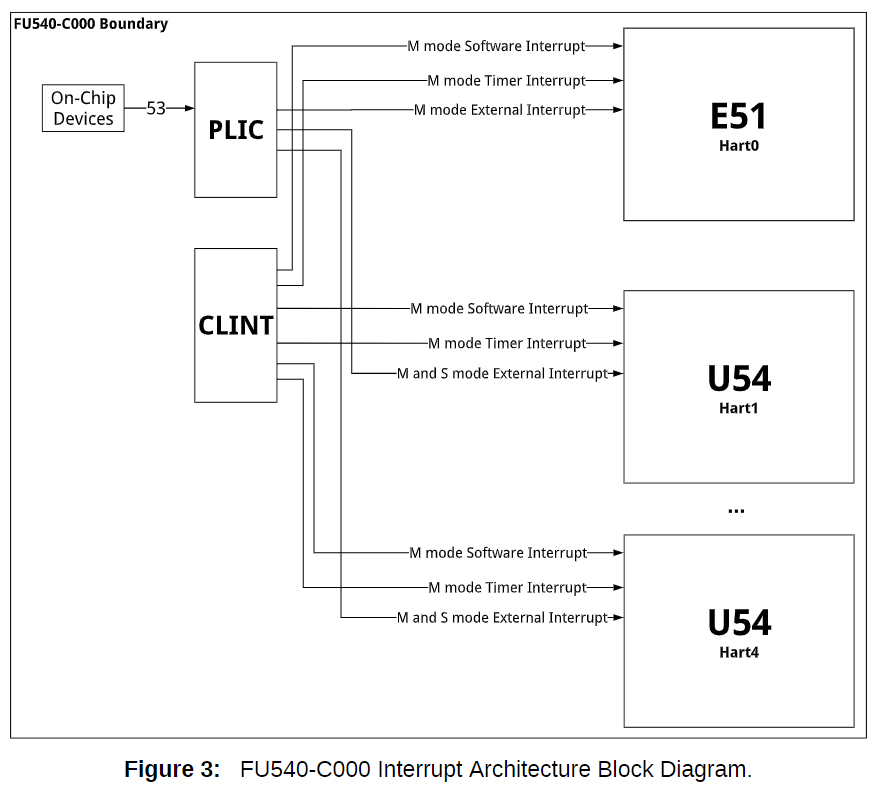

  // ask the CLINT for a timer interrupt.
  int interval = 1000000; // cycles; about 1/10th second in qemu.
  *(uint64*)CLINT_MTIMECMP(id) = *(uint64*)CLINT_MTIME + interval;

  // prepare information in scratch[] for timervec.
  // scratch[0..2] : space for timervec to save registers.
  // scratch[3] : address of CLINT MTIMECMP register.
  // scratch[4] : desired interval (in cycles) between timer interrupts.
  uint64 *scratch = &timer_scratch[id][0];
  scratch[3] = CLINT_MTIMECMP(id);
  scratch[4] = interval;
  w_mscratch((uint64)scratch);

  // set the machine-mode trap handler.
  w_mtvec((uint64)timervec);

  // enable machine-mode interrupts.
  w_mstatus(r_mstatus() | MSTATUS_MIE);

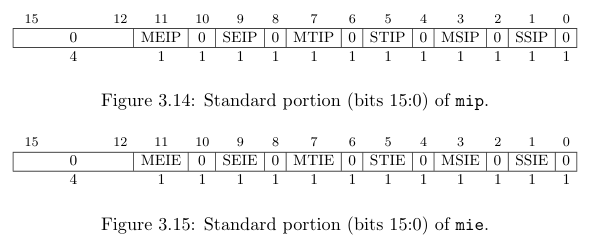

  // enable machine-mode timer interrupts.
  w_mie(r_mie() | MIE_MTIE);
}

.globl timervec
.align 4
timervec:
        # start.c has set up the memory that mscratch points to:
        # scratch[0,8,16] : register save area.
        # scratch[24] : address of CLINT's MTIMECMP register.
        # scratch[32] : desired interval between interrupts.

        csrrw a0, mscratch, a0
        sd a1, 0(a0)
        sd a2, 8(a0)
        sd a3, 16(a0)

        # schedule the next timer interrupt
        # by adding interval to mtimecmp.
        ld a1, 24(a0) # CLINT_MTIMECMP(hart)
        ld a2, 32(a0) # interval
        ld a3, 0(a1)
        add a3, a3, a2
        sd a3, 0(a1)

        # raise a supervisor software interrupt.
				li a1, 2
        csrw sip, a1

        ld a3, 16(a0)
        ld a2, 8(a0)
        ld a1, 0(a0)
        csrrw a0, mscratch, a0

        mret
